步距角(DEG.)

電壓(V)

電流(A)

保持轉(zhuǎn)矩N.M(kg.cm)

空載啟動(dòng)頻率(HZ)

運(yùn)行頻率(HZ)

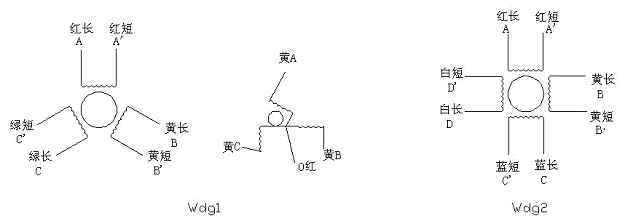

接線圖

備注

36BF003

1.5°/3°

27

1.5

0.78(0.8)

3100

1

可供雙軸伸

45BF005-II

1.5°/3°

27

2.5

0.196(2)

3000

1

可供雙軸伸

45BC340C

1.5°/3°

12

0.4

0.118(1.2)

500

1

可供雙軸伸

55BF003

1.5°/3°

27

3

0.666(7)

1800

1

可供雙軸伸

55BF004

1.5°/3°

27

2.5

0.49(5)

2200

1

可供雙軸伸

55BF004-II

1.5°/3°

30

0.5

0.49(5)

550

1

55BF009

0.9°/1.8°

27

3

0.748(8)

2500

2

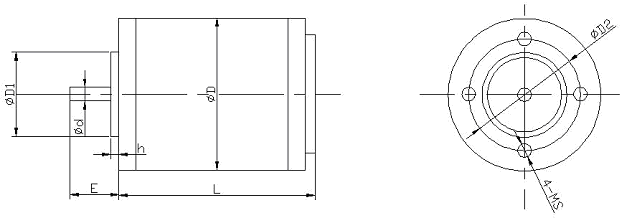

φD

φD1

h

φd

E

L

φD2

MS

36BF003

36

2.5

14.5

41

27

4-M3

45BF005-II

45

2.5

14.5

58

33

4-M3

45BF003

45

2.5

14.5

58

33

4-M3

45BF008

45

2.5

14.5

58

33

4-M3

45BC340C

45

2.5

14.5

58

33

4-M3

55BF003

55

2.5

20.5

70

40

4-M3

55BF004

55

2.5

20.5

60

40

4-M3

55BF004-II

55

2.5

20.5

60

40

4-M3

55BF009

55

2.5

20.5

70

40

4-M3
